Configuration
| Frame: | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Frame material: | aluminium |
| Wheel size: | Size Split: 27.5: XS (14″), S (16″) // 29: M (18″), L (20″), XL (22″) |
| Colour: | mistygreen´n´black |
| Fork: | SR Suntour XCE, 100mm |
| Travel: | 100 mm |
| Brakes: | Clarks Clout 1, Hydr. Disc Brake PM/FM |
| Brake discs: | 160/160 mm |
| Headset: | CUBE FPH863, Semi-Integrated |
| Stem: | CUBE Performance Stem, 31.8mm |
| Handlebar: | CUBE Rise Trail Bar, 680mm |
| Bar grips: | ACID React |
| Saddle: | Natural Fit Venec Lite |
| Seatpost: | CUBE Performance Post, 27.2mm |
| Seat clamp: | CUBE Varioclose, 31.8mm |
| Crankset: | Shimano FC-M315, 36x22T, 170mm |
| Bottom bracket: | Feimin FP-B902N, 73mm BSA |
| Rear derailleur: | Shimano RD-TX800, 8-Speed |
| Gear shifters: | Shimano SL-M315, Rapidfire-Plus |
| Front derailleur: | Shimano FD-M315, Top Swing, 31.8mm Clamp |
| Cassette: | Shimano CS-HG200, 12-32T |
| Chain: | KMC Z8.3 |
| Tyres: | CUBE IMPAC Smartpac, 2.25 |
| Front hub: | CUBE Alloy Light, QR, 6-Bolt |
| Rear hub: | CUBE Alloy Light, QR, 6-Bolt |
| Rims: | CUBE ZX20, 32H, Disc |
| Pedals: | CUBE PP MTB |
| Maximum total weight allowed: | 140 kg (body weight + bike + equipment) |
| Weight: | starting from 14,9 kg |
Shimano’s 2×8-speed gears give you the range you need at the push of a button, and powerful flat mount disc brakes bring you safely to a stop. And SizeSplit, with a wider range of sizes than ever before, means every rider can find their ideal Aim.
Frame sizes XS (14″) and S (16″) come with 27.5″ wheels, sizes M (18″), L (20″), XL (22″) are 29ers.
FRAME Cube Aim

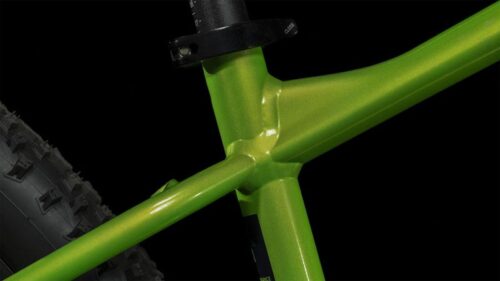

Completely revised, the brand-new Aim’s sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with the kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. The SizeSplit system has an expanded range too, so however tall you are there’ll be an Aim that fits perfectly.
