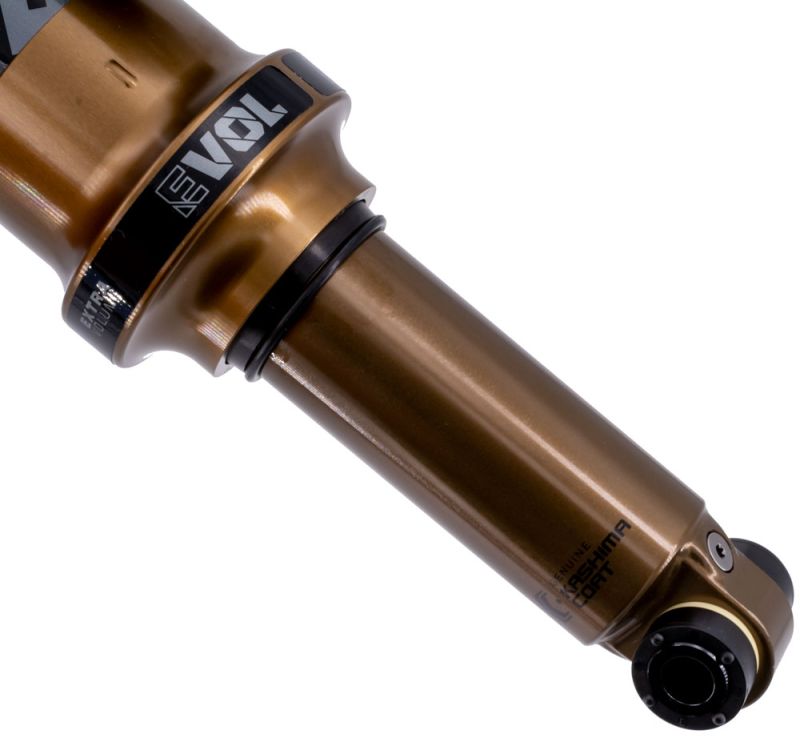

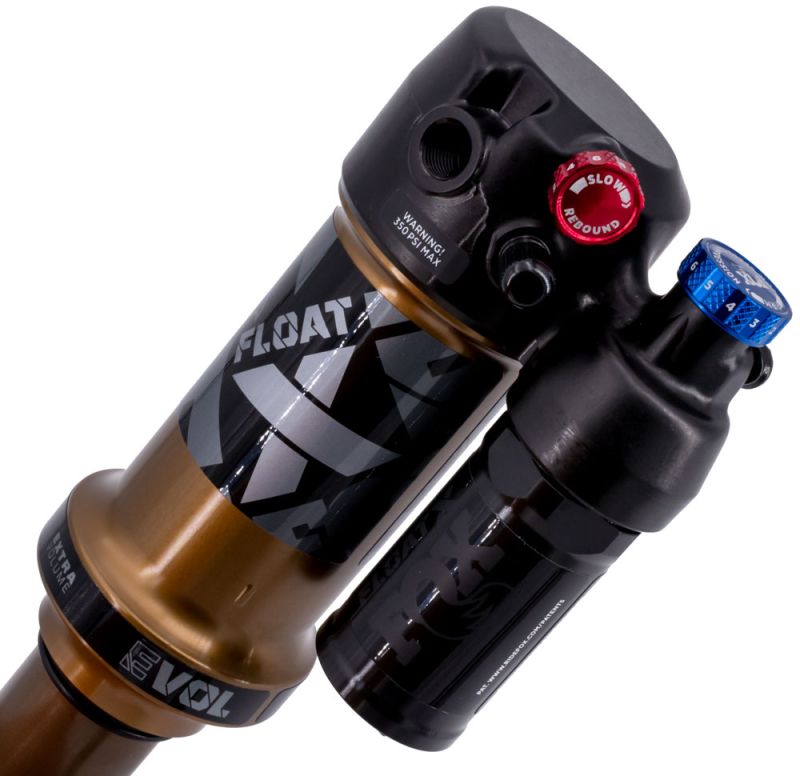

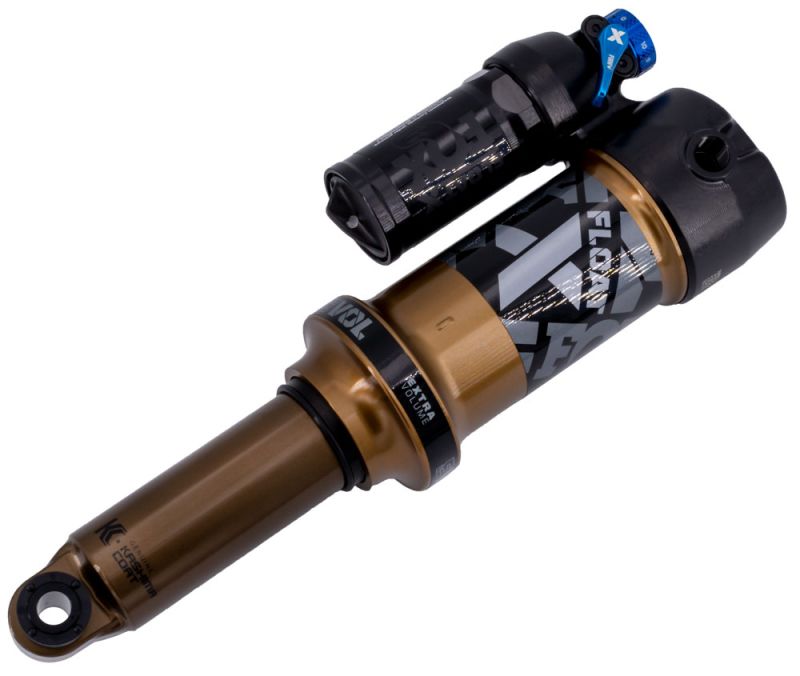

Fox Racing Shox Float X Factory 2pos Adj Evol Trunnion Shock

Designed specifically to meet the demands of aggressive trail riders, the new Fox Racing FLOAT X Factory 2pos-Adj Evol Trunnion Shock combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.

---

Features – Fox Racing Float X Factory 2pos- Adj Evol Trunnion Shock

• All new chassis and damper
• High-flow main piston
• Air seal package
• Volume spacers with smaller increments
• MCU bottom out bumper
• Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit – Clockable 2 position adjuster
• Increased rebound adjuster range (over DPX2)
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
• Bearing hardware compatible both sides
• Air valve location offers improved frame fitment and pump access

Product Features

• Use: All-Mountain, Trail, Enduro, Downhill
• Version: Factory
• Suspension: Air
• Mounting: Trunnion
• Evol: Large Volume
• Settings:
  • Low-Speed-Rebound 11 clicks
  • Low-Speed-Compression 11 clicks
  • 2 Position Open/Firm lever
• Installation length: 205 mm
• Hub: 57.5 mm

Color

• matt black

---

Scope of delivery

• 1 Fox Racing Float X Factory 2pos- Adj Evol Trunnion Shock (without original packaging)

Damper bushings not included!

---

Technology

EVOL – Extra Volume
The Extra Volume (EVOL) air sleeve significantly reduces the force to initiate travel, providing added sensitivity and better small bump compliance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
